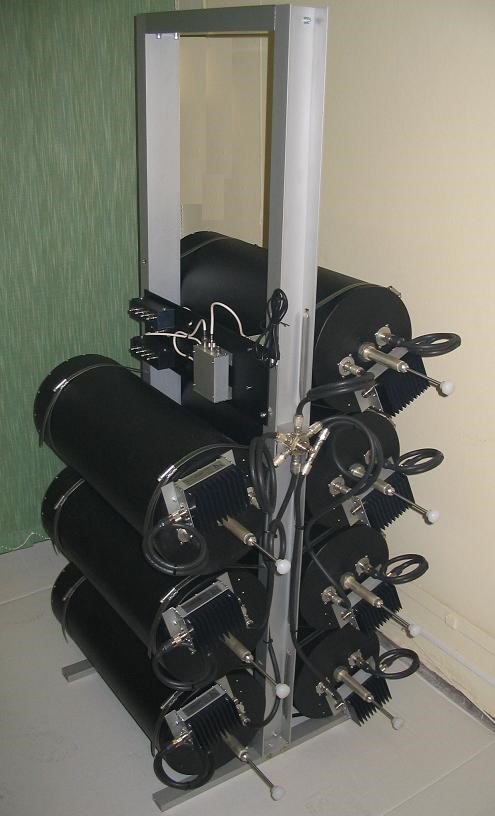

Cavity TX Combiner Micro-CMS160
Cavity TX Combiner Micro-CMS160
| Model | MICRO-CMS-160 |
|---|---|
| Frequency range, MHz | 136-174 |
| Number of Channels | 7 |
| Impedance, Ohms | 50 > |
| VSWR | < 1:1,2 |
| Power of transmitter, Wt | 50 |
| Frequency separation/Insertion loss TX, kHz/dB | 500/2,6; 250/3,8; 150/4,8 |
| TX/TX isolation, dB | > 90 |
| Ant/Tx isolation , dB | > 80 |
| Cavity type end diameter | 1/4 lw, 10" (8") |
| Rx Gain factor, dB | 0-9 |
| Noise of LNA, dB | < 1 |
| RX/RX isolation , dB | > 20 |
| TX noise suppression, dB | - |
| Power for LNA | 220 AC |
| Temperature range, °C | -20...+60 |
| Connectors | N-female |
| Dimensions (HxWxL), mm | 650 x 650 x 1600 |
| Weight, kg | 80 |
