Cavity and Hybrid Transmitter Combiners

Hybrid TX Combiner Micro-HR160

Transmitter Frequency Combiners Hybrid Type Hybrid TX Combiner Micro HR160

Model

HR160 - 1
50W-2C

HR160 - 1
100W-2C

HR160 - 1
300W-2C

HR160 - 1
50W-4C

HR160 - 1
100W-4C

HR160 - 1
300W-4C

Combiner type

Hybrid

Number of Channels

2

2

2

4

4

4

Frequency range, MHz

144-174

Cavity type end diameter

1/4 lw, 10" (8")

Isolator type

Single stage

Power input (per channel), W

50

100

300

50

100

300

Insertion loss, dB

-/<3,6

-/<3,6

-/<3,6

-/<7,0

-/<7,0

-/<7,0

TX/TX isolation, dB

> 70

Ant/Tx isolation , dB

> 40

Impedance, Ohms

50

VSWR

< 1:1,2

Temperature range, °C

-20...+60

Connectors

N-female

Mounting

19" mounting rack

Dimensions, mm

132x485x350

Weight, kg

5

6,5

8

9

13

17

Cavity TX Combiner Micro-CMS160

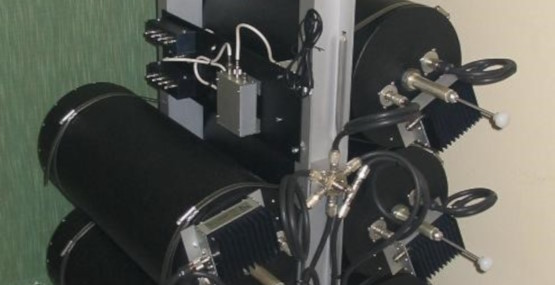

Transmitter Frequency Cavity Combiner 7 Channel UHF Cavity TX Combiner Micro CMS160

Model

MICRO – CMS – 160

Frequency range, MHz

136-174

Number of Channels

7

Impedance, Ohms

50

VSWR

< 1:1,2

Power of transmitter, Wt

50

Frequency separation/Insertion loss TX, kHz/dB

500/2,6; 250/3,8; 150/4,8

TX/TX isolation, dB

> 90

Ant/Tx isolation , dB

> 80

Cavity type end diameter

1/4 lw, 10" (8")

Rx Gain factor, dB

0-9

Noise of LNA, dB

< 1

RX/RX isolation , dB

> 20

TX noise suppression, dB

-

Power for LNA, ?

220AC

Temperature range, °C

-20...+60

Connectors

N-female

Dimensions (H?W?L), mm

650x650x1600

Weight, kg

80
